QLXD14 100-Channel UHF Wireless Instrument System – QLXD4 Receiver + QLXD1 Bodypack + Beta98 Mic, 300m Range
Professional Wireless Audio for Every Performance
Discover our range of high-performance wireless microphone systems, conference mics, and power amplifiers. Built with True Diversity UHF technology for crystal‑clear, dropout‑free sound on stage, in the studio, or in the meeting room. Free shipping, 3‑year warranty, and based support included with every order.
QLXD14 100-Channel UHF Wireless Instrument System
QLXD4 Receiver + QLXD1 Bodypack + Beta98 Mic | 100–300m Range | Encrypted UHF | 1/2U Rack | For Stage Instruments
Product Gallery
Click image to enlarge. Actual product may vary slightly.
Product Overview

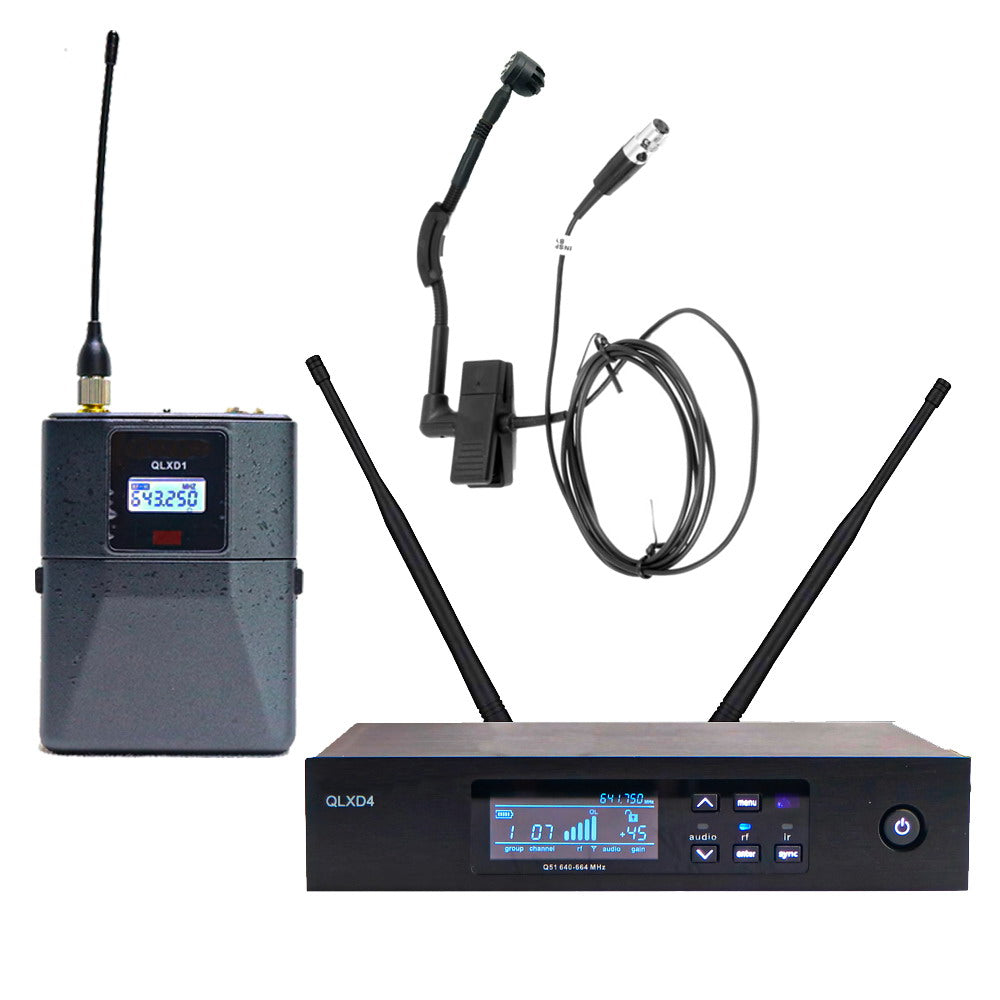

The QLXD14 100-Channel UHF Wireless Instrument System delivers professional-grade wireless freedom for stage musicians, horn sections, string players, and multi-instrumentalists. This complete package includes the QLXD4 1/2U rack-mountable receiver, the QLXD1 beltpack transmitter, and the Beta98 miniature instrument microphone—everything you need to go wireless with exceptional audio fidelity. Operating in the UHF 640–664 MHz band with 100 selectable channels, the system offers a remarkable 100–300 meter range, advanced encryption for secure transmission, and a bright blue LED display for real-time monitoring. Whether you're miking a saxophone, trumpet, violin, or acoustic guitar, the QLXD14 preserves every nuance and dynamic detail, letting you move freely across the largest stages without cables holding you back.
What‘s Included
- ✅ 1× QLXD4 1/2U Rack Receiver
- ✅ 1× QLXD1 Beltpack Transmitter
- ✅ 1× Beta98 Miniature Instrument Microphone
- ✅ 2× Antennas
- ✅ 1× Audio Cable
- ✅ 1× Power Adapter
- ✅ 1× User Manual
Key Features & Benefits
🔹 Complete 3-in-1 Wireless Instrument Kit
Unbox and go wireless immediately. The QLXD14 package bundles the QLXD4 half-rack receiver, the lightweight QLXD1 bodypack transmitter, and the acclaimed Beta98 condenser instrument microphone into one ready-to-use system. No extra purchases, no guesswork—just professional wireless performance for sax, trumpet, percussion, guitar, and orchestral instruments.
🔹 100 UHF Channels & 300-Meter Reach
With 100 selectable frequencies in the UHF 640–664 MHz band, you can quickly find an open channel even in dense RF environments like music festivals and urban venues. The link remains solid from 100 meters in challenging indoor spaces up to 300 meters in open areas, giving instrumentalists total freedom to roam the stage, walk into the crowd, or perform anywhere.
🔹 Encrypted Digital UHF Transmission – Secure & Interference-Free
Advanced digital encryption scrambles your audio signal end-to-end, preventing signal hijacking, eavesdropping, and cross-channel interference. Critical for premium concerts, broadcast feeds, and confidential corporate events, this technology ensures your performance stays private and pristine.
🔹 Compact 1/2U Rack Receiver with Blue LED Display
The QLXD4 receiver is built into a rugged black metal half-rack chassis that fits neatly into any standard 19-inch rack when paired with an optional rackmount kit. The bright blue LED display provides real-time status of frequency, RF/AF levels, and transmitter battery life, keeping you in full control from soundcheck to final bow.
🔹 Optimized for Stage Instruments – Preserve Every Nuance
The included Beta98 miniature condenser microphone captures the full tonal character and dynamic range of acoustic instruments with stunning clarity. Combined with the QLXD1 bodypack's clean preamp and the system's wide frequency response, your saxophone, trumpet, cello, or percussion sounds exactly as it should—only without the cables holding you back.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | QLXD14 |
| System Components | QLXD4 Receiver + QLXD1 Bodypack + Beta98 Mic |
| Frequency Band | UHF 640 – 664 MHz |
| Channels | 100 selectable |
| Transmission Type | Digital UHF with encryption |
| Operating Range | 100 m (indoor) – 300 m (open area) |
| Receiver Display | Blue LED display (frequency, RF/AF, battery) |
| Receiver Enclosure | Black metal, 1/2U rack-mountable |
| Bodypack Transmitter | QLXD1 beltpack (compact, lightweight) |
| Instrument Mic | Beta98 miniature condenser |
| Battery Life | Approx. 8 hours (AA batteries) |
| Outputs | XLR balanced + 1/4″ output |
| Ideal For | Saxophone, trumpet, guitar, violin, percussion, live stage instruments |
| Warranty | 1 Year (Manufacturer: MiCWL Audio Inc.) |
Who‘s It For?
🛡️ Authorized Dealer Warranty: This product is brand new in original packaging, sold by MiCWL Audio Inc. as an authorized dealer. Covered by a 1-Year Manufacturer Warranty. Buy with confidence.
📩 Have Questions or Need a Custom Configuration?
If you have any questions about the QLXD14 instrument system, need a different microphone option, or want to discuss bulk / custom orders — our team is ready to assist you.
