Pro 4x KSM8 400 Channel UHF Digital Wireless Microphone System 500m Range
Professional Wireless Audio for Every Performance
Discover our range of high-performance wireless microphone systems, conference mics, and power amplifiers. Built with True Diversity UHF technology for crystal‑clear, dropout‑free sound on stage, in the studio, or in the meeting room. Free shipping, 3‑year warranty, and based support included with every order.
AD4Q 4-Channel UHF Digital Wireless Microphone System
4× KSM8 Handheld Mics | 400 Channels | 300-500m Range | True Diversity | PLL Digital Synthesis

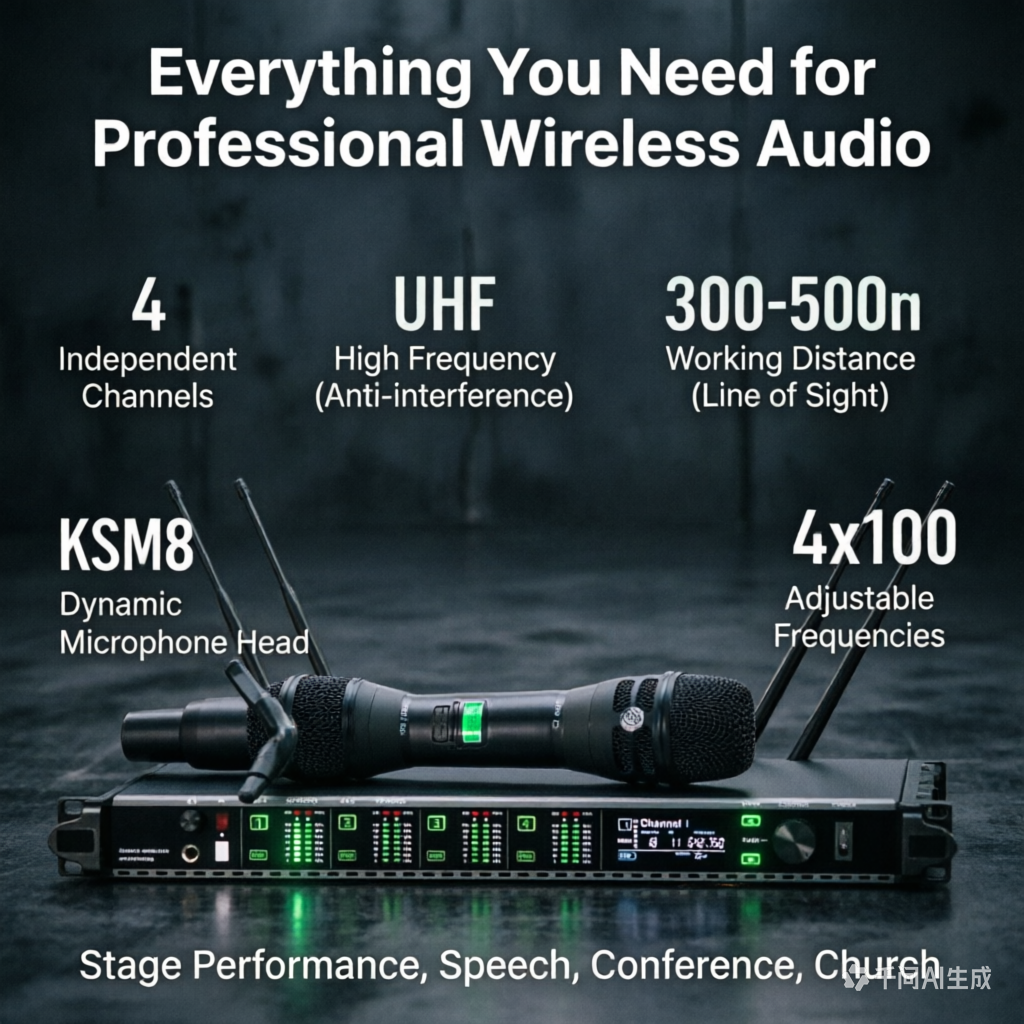

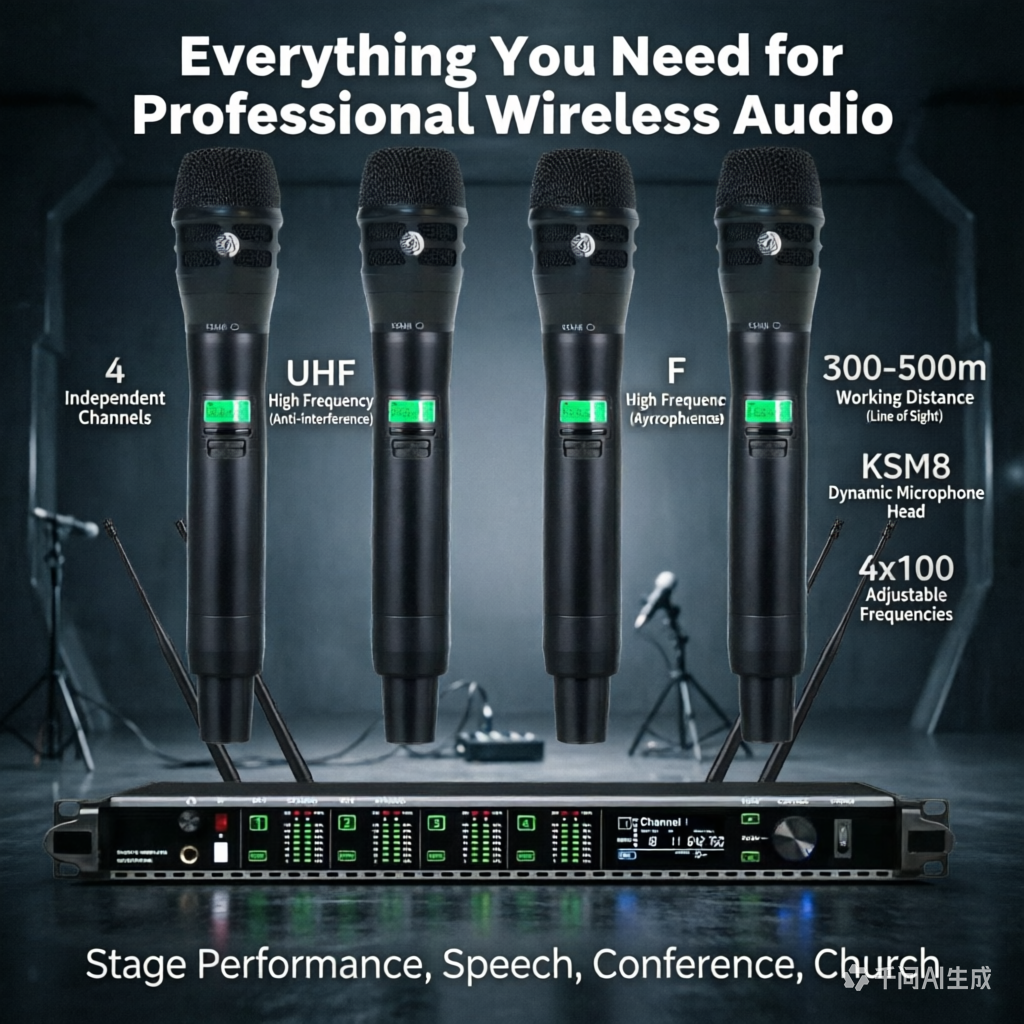

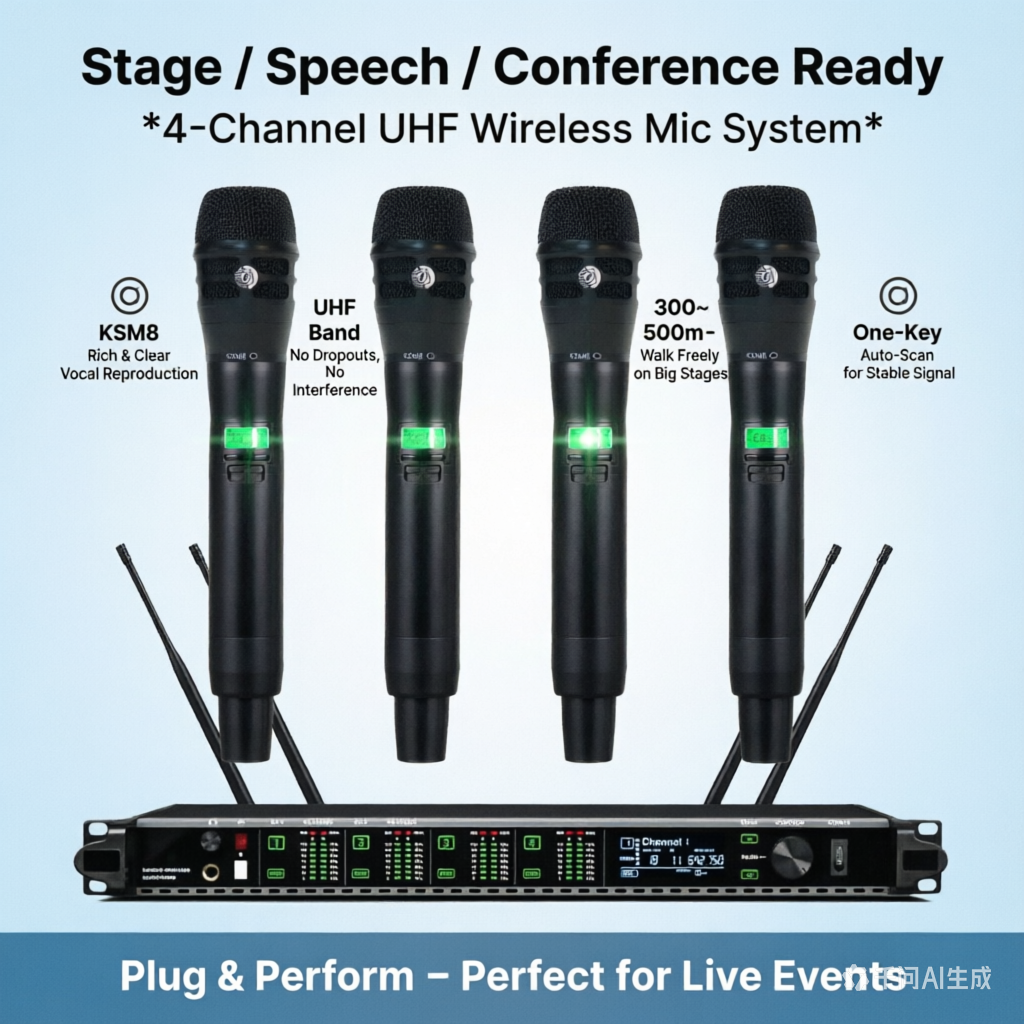

Product Gallery
Click images to enlarge. Actual product may vary slightly.
Product Overview
The AD4Q 4-Channel UHF Digital Wireless Microphone System is a flagship professional wireless solution engineered for large-scale events and demanding live audio environments. Designed specifically for stage performances, band gigs, houses of worship, school auditoriums, and corporate conference rooms, this system includes a sleek 1U rack-mountable receiver and 4 premium KSM8 handheld condenser microphones. Featuring 400 user-adjustable UHF channels (100 per receiver), PLL digital phase-locked loop technology, and an impressive 300–500 meter line-of-sight range, the AD4Q delivers pristine, dropout-free audio that competitors simply cannot match at this price point. Each mic runs up to 12 hours on AA batteries, with a signature blue LED status ring for real-time monitoring—making this the ultimate all-in-one wireless solution for any professional audio setup.[reference:0]
Key Features & Benefits
🔹 Advanced 4-Channel System Architecture with 400-Channel Flexibility
Each of the 4 independent receivers offers 100 selectable channels (250 kHz spacing, 24.75 MHz per channel), totaling 400 user-adjustable UHF frequencies across the 610–670 MHz band. Up to 20 systems (80 transmitters) can operate simultaneously on the same stage without crosstalk, making this ideal for large-scale musicals, multi-act festivals, and multi-room conference centers.[reference:1]
🔹 PLL Digital Synthesis & True Diversity for Unshakeable RF Stability
Advanced phase-locked loop (PLL) digital lock-phase technology paired with chip-based circuitry ensures exceptional frequency stability of ±0.001%, eliminating drift and dropouts. True Diversity reception with 4 rubber receiving antennas delivers 300–500 meters line-of-sight range (80–200m in complex environments), with >60dB signal-to-noise ratio, <0.5% THD at 1kHz, and ≥100dB dynamic range—maintaining clean audio even in RF-congested concert venues and urban environments.[reference:2]
🔹 4 × KSM8 Handheld Mics — Precision Sound with Blue LED Status Ring
Each KSM8 handheld features a high-fidelity unidirectional (cardioid) condenser capsule with a frequency response of 40 Hz – 20 kHz, capturing every vocal nuance with outstanding clarity and minimal noise. Rated at -43 ±3dB sensitivity @ 1 kHz with only 80 mA power consumption, each mic runs continuously for up to 12 hours on AA batteries. The patented housing includes a signature blue light ring that illuminates during operation for at-a-glance status monitoring on dark stages.[reference:3]
🔹 Versatile Connectivity & Flexible Transmitter Pairing
The rear panel features 4 independent SQ potentiometers, 4 balanced XLR outputs, and 1 mixed unbalanced output, providing full compatibility with mixers, amplifiers, and recording interfaces. Unlike fixed single-channel systems, each handheld can be paired across all 400 channels within two receiver banks, offering unmatched setup versatility for changing stage configurations or multi-room events.[reference:4]
🔹 Complete Package — Ready for Professional Deployment
The AD4Q ships as a turnkey solution with everything needed for immediate professional use: 1 × 4-channel digital receiver, 4 × KSM8 handheld microphones, 1 × 1/4-inch audio cable, 1 × universal AC-DC adapter (110V / 240V), 4 × antennas, and 1 × user manual. The receiver features dual large LED displays for real-time frequency monitoring and a sleek 1U rack-mountable form factor that integrates seamlessly into any existing audio rack setup.[reference:5]
Technical Specifications
What‘s in the Box
- ✅ 1× AD4Q 4-Channel Digital Receiver (1U Rack-Mountable)
- ✅ 4× KSM8 Handheld Condenser Microphones
- ✅ 4× Rubber Antennas
- ✅ 1× 1/4" Audio Cable
- ✅ 1× Universal AC-DC Adapter (110V / 240V)
- ✅ 1× User Manual
Ideal Applications
🛡️ Authorized Dealer Warranty: This product is brand new in original packaging, sold by MiCWL Audio Inc. as an authorized dealer. Covered by a 1-Year Manufacturer Warranty. Buy with confidence.
📩 Have Questions or Need a Custom Configuration?
If you have any questions about the AD4Q system, need a custom microphone capsule configuration (KSM9, Beta58, BeltPack options available), or would like to inquire about bulk / government orders — our team is ready to assist you.
