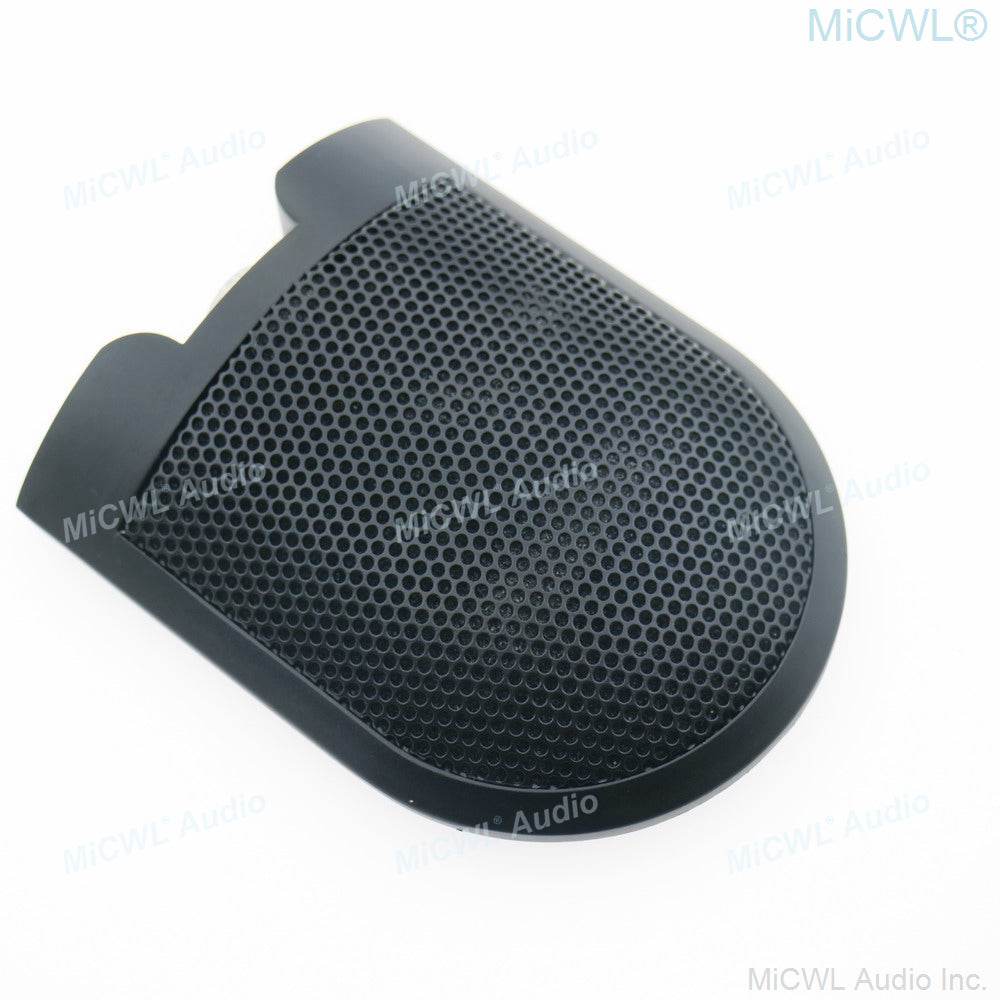

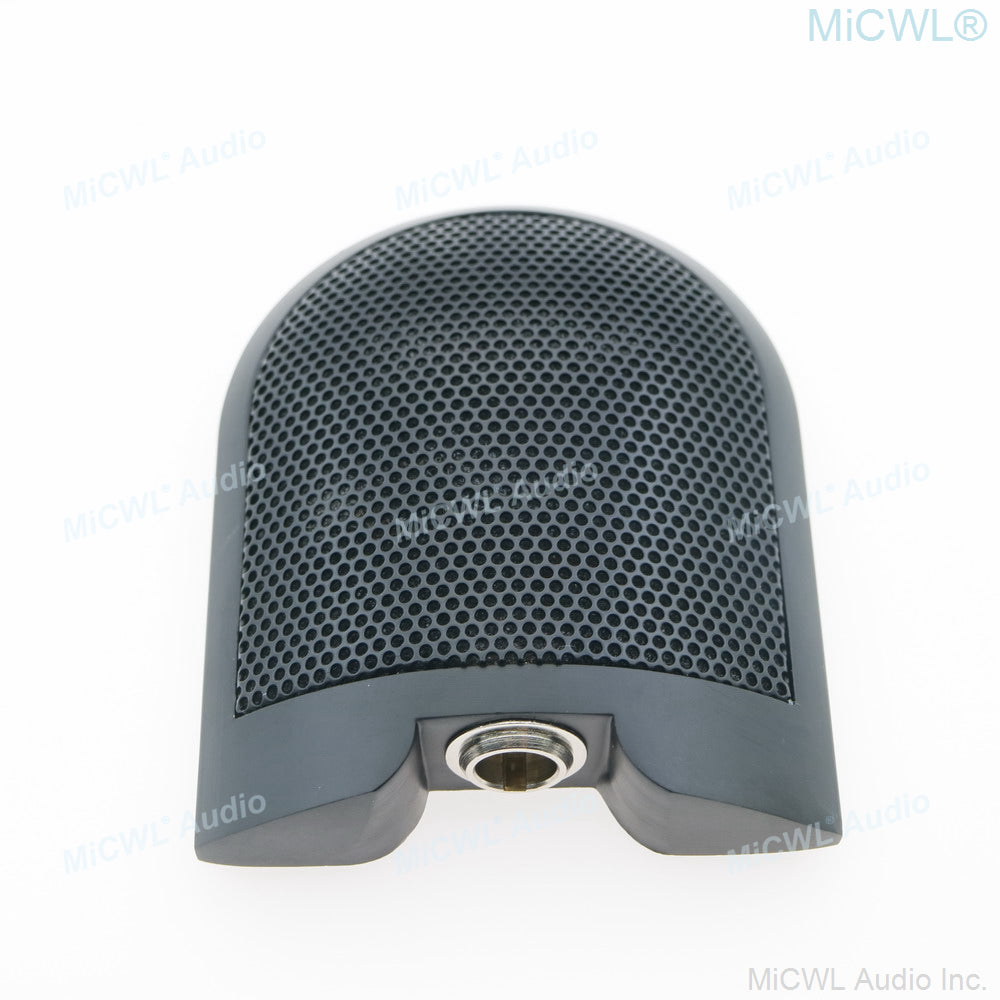

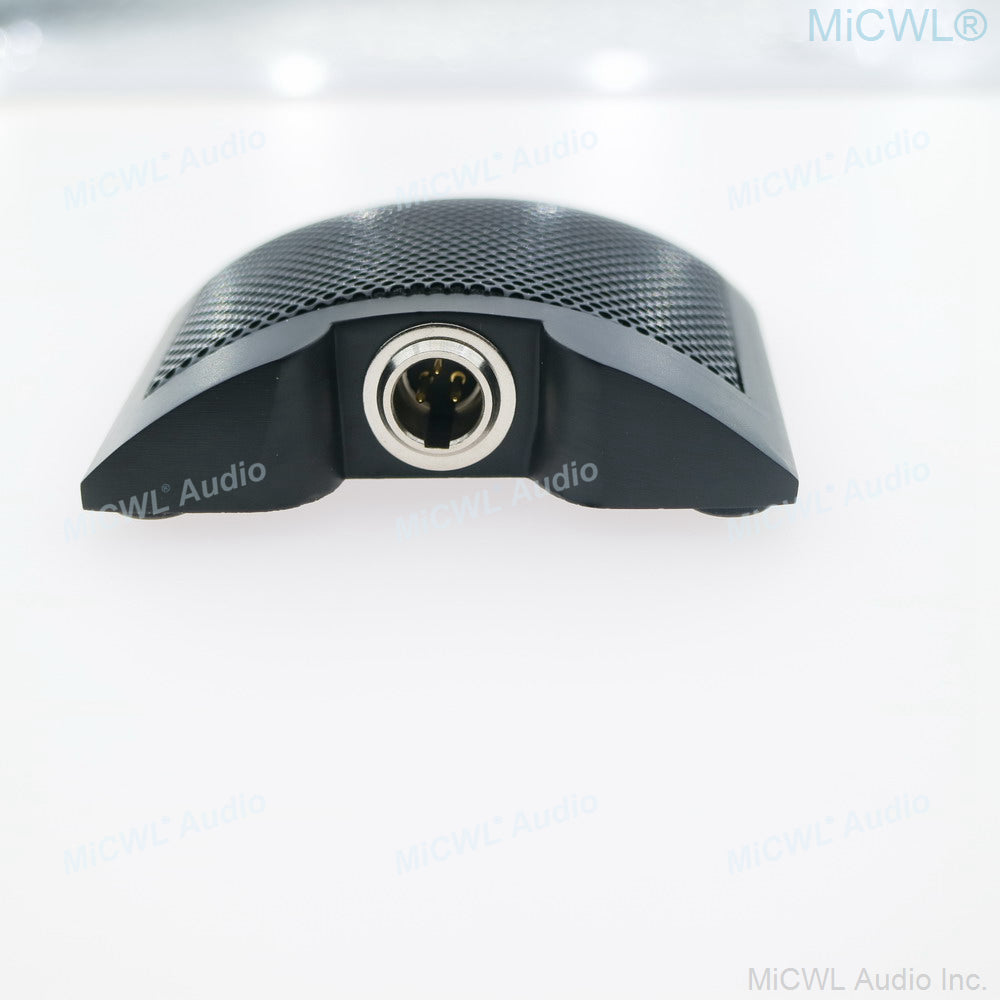

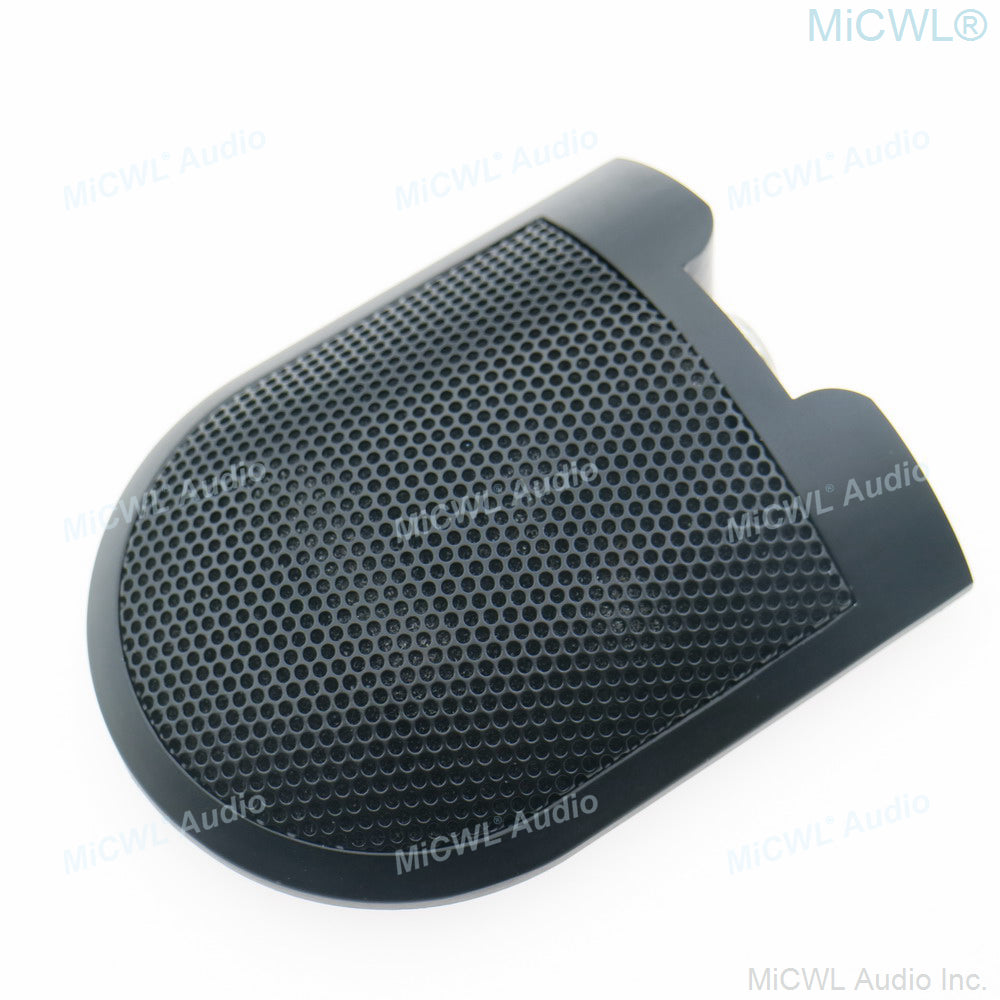

MiCWL BM-630 Hypercardioid Boundary Conference Microphone – XLR Phantom Power, 6m Cable
Professional Wireless Audio for Every Performance
Discover our range of high-performance wireless microphone systems, conference mics, and power amplifiers. Built with True Diversity UHF technology for crystal‑clear, dropout‑free sound on stage, in the studio, or in the meeting room. Free shipping, 3‑year warranty, and based support included with every order.
BM-630 Hypercardioid Boundary Conference Microphone
XLR Phantom Power | Push‑to‑Mute | Bass Filter | 6m Cable | Hyper‑Cardioid

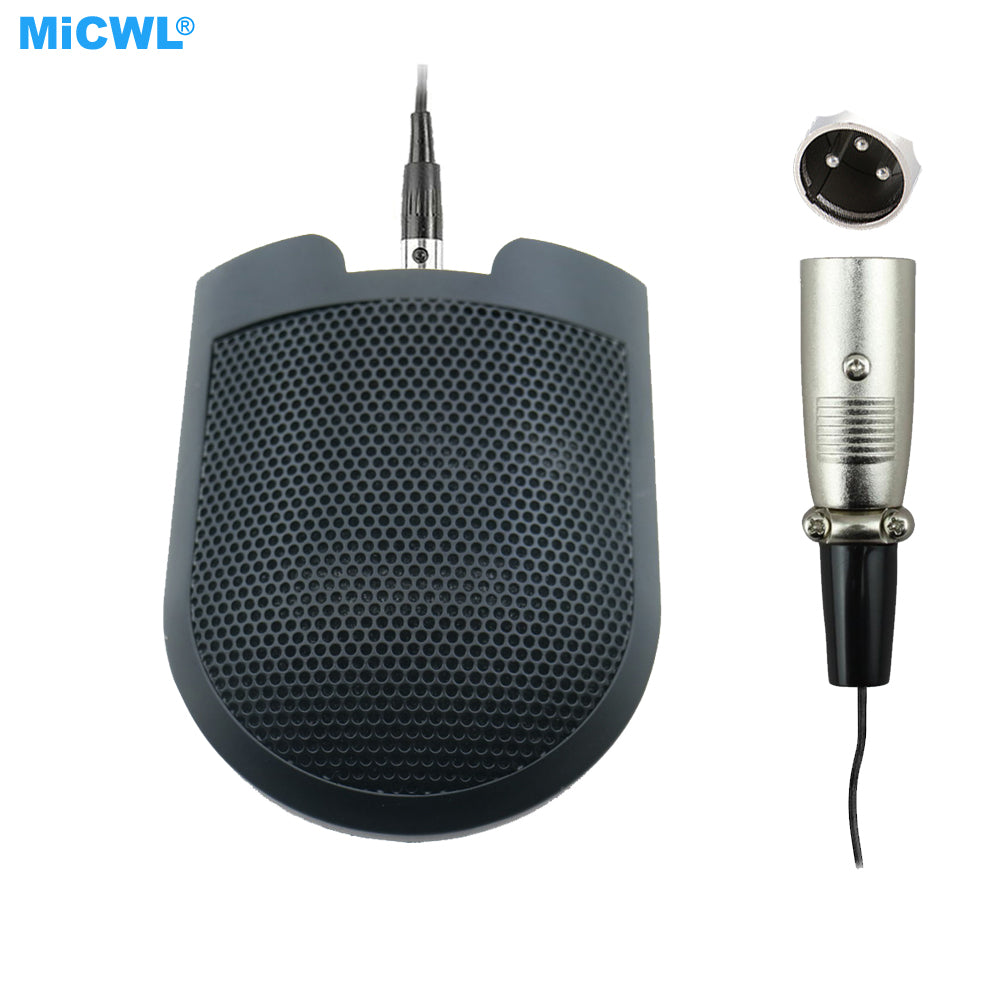

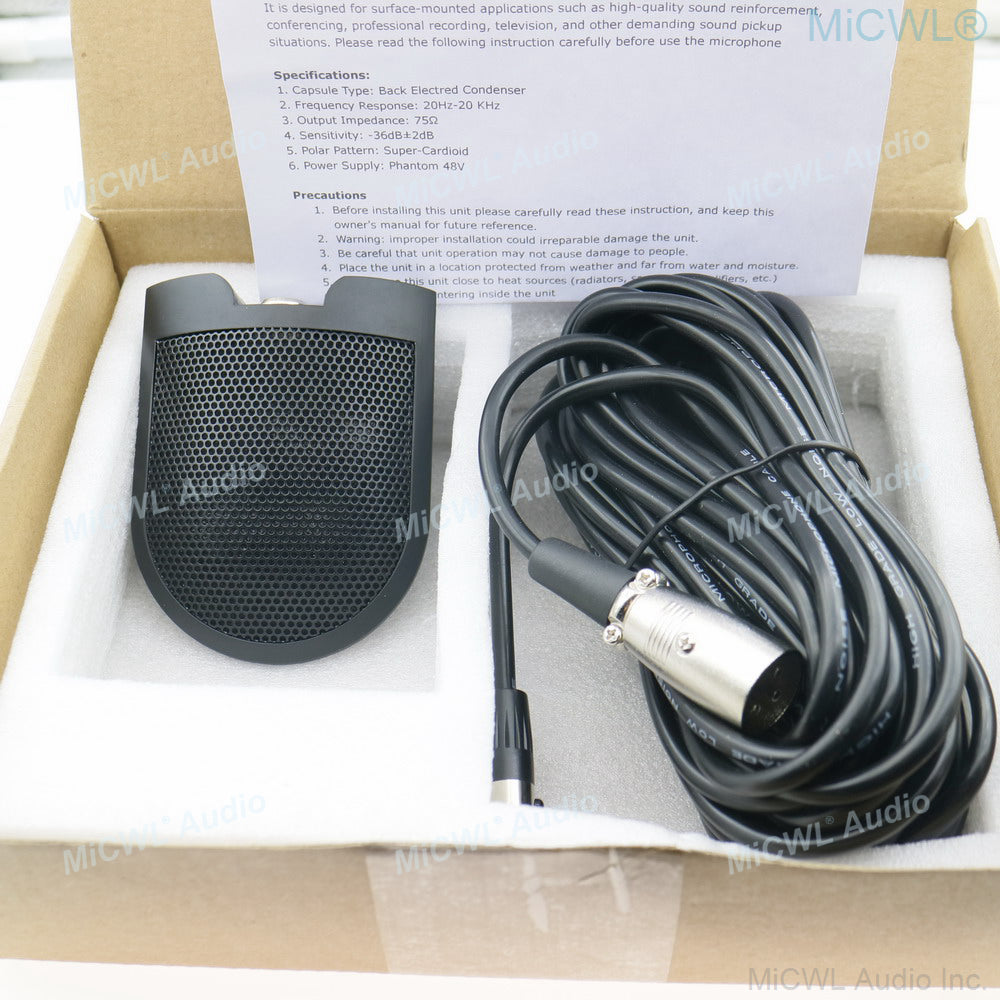

Product includes BM-630 boundary microphone and 6m XLR cable. Requires 9‑52V DC phantom power.
Focused pickup rejects off‑axis noise – clear speech even in noisy rooms
Silent mute switch with bright LED – knows at a glance if the mic is live
Removes rumble, air conditioning noise, and table vibrations
Long cable for flexible room setup; works with any 9‑52V phantom power source
Professional Desktop Boundary Microphone for Speech & Conferences
The MiCWL BM-630 Hypercardioid Boundary Conference Microphone is purpose‑built for clear, intelligible speech in meeting rooms, boardrooms, and broadcast settings. Its hyper‑cardioid polar pattern focuses on the talker while suppressing ambient noise. The push‑to‑mute switch with LED indicator lets you take private moments without noisy pops or clicks. A switchable 80Hz bass filter eliminates rumble and HVAC noise, while the shock‑absorbing rubber base isolates surface vibrations. Powered by standard 9‑52V XLR phantom power, the BM-630 includes a generous 6‑meter XLR cable for flexible placement. Whether for videoconferencing, panel discussions, or live broadcasts, this boundary mic delivers polished, professional audio right out of the box.
Key Features of the BM-630
🎯 Hyper‑Cardioid Pickup – Precision Voice Isolation
The hyper‑cardioid pattern captures the speaker directly in front while rejecting off‑axis sounds and room reverberation. Your voice stays clear and focused, even in large reflective rooms.
🔇 Silent Push‑to‑Mute with LED
An electronic push‑to‑mute switch provides silent, pop‑free muting. The bright LED indicator glows when the microphone is active, so everyone knows when it’s live.
⚡ Switchable Bass Filter (80Hz)
Toggle the 10dB/octave 80Hz low‑cut filter to instantly remove low‑frequency rumble from HVAC systems, table bumps, and foot traffic – no external processing needed.
🛡️ Shock‑Absorbing Rubber Base
The rugged metal housing sits on a heavy rubber pad that mechanically isolates the microphone from table vibrations, ensuring only the speaker’s voice is captured.
🔌 6‑Meter XLR Cable & Phantom Power
Includes a 6m (19.7ft) balanced XLR cable for easy routing to mixers or interfaces. Operates on 9‑52V DC phantom power – just plug in and speak.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BM-630 |
| Transducer | Back Electret Condenser |
| Polar Pattern | Hyper‑Cardioid |
| Frequency Response | 40Hz – 16kHz |
| Sensitivity | -36dB ±3dB (0dB=1V/Pa at 1kHz) |
| Output Impedance | 100Ω ±30% (at 1kHz) |
| Self‑Noise | ≤26dB A (IEC 581-5) |
| Max SPL | 130dB (THD ≤1.0 at 1kHz) |
| Bass Filter | 10dB/octave at 80Hz (switchable) |
| Power | 9‑52V DC Phantom Power |
| Cable Length | 6m (19.7ft) XLR Cable Included |
| Warranty | 1 Year – MiCWL Audio Inc. |
Compatibility & Certifications
Compatible with: Any mixing console, audio interface, or XLR microphone input providing 9‑52V phantom power. Works seamlessly with major brands such as Yamaha, Behringer, Shure, Rode, Zoom, Focusrite, and more.
Certifications: CE, FCC (compliant with relevant emission and safety standards). Built in ISO‑certified factory.
Frequently Asked Questions
Q: Does this mic require batteries?
A: No. It is powered exclusively by 9‑52V XLR phantom power from your mixer or interface.
Q: Can I use it with a computer directly?
A: You need an audio interface or mixer that provides phantom power via XLR. A simple XLR‑to‑USB adapter will not work unless it supplies phantom power.
Q: How does the mute switch work?
A: It’s an electronic push‑to‑mute switch. Press to mute the audio silently; the LED turns off. Press again to unmute.
Q: Is the bass filter always on?
A: No. There is a physical switch on the bottom of the microphone to turn the 80Hz low‑cut filter on or off as needed.
