MiCWL Wireless Conference 20 Microphone System 1 Control Unit 1 President 19 Delegate Slots for Meeting Room A116

MiCWL Audio Inc.

MiCWL A10M Series Digital Discussing Host with A116 Wireless Desktop Conference System

A10M Series Host


with A116 Mode Professional Wireless Digital Desktop Gooseneck Microphone


2U 19" Rack Mountable Design

with  20 Destop Microphone

(1 Host Support up to 300pcs Gooseneck table Microphone working at the same time,


please contact us if you need more Delegate Unit Microphones )

Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.

A10M Wireless Host Unit Description:



· Products using digital radio processing audio signals and control signals, without the cumbersome wires;

· Scientific IP and ID code design, ID: 001-008, IP: 001-160;

· Unlimited number of units can be placed anywhere in the loop;

· CPU multi-stage error correction and encryption scrambling. Prevent cross-channel interference and anti-cell phone electromagnetic interference;

· FIFO and having restrictions on speech, the President dedicated three kinds of speech patterns, while the number of speakers 1-4 persons Optional;

A host large screen (240X128) dot matrix LCD display work content. Hierarchical menu design, with volume control, speech patterns, the number of speakers, using the channel, EQ functions, communication and IP communication ID adjustment function, real-time display the number of speakers, the order of the channel, the channel position and power unit data;

· Chairman priority control function, limited by limiting function, can cut the representative;

Use distance: 100-120 meters, communication distance: 120-200 meters;

· 2U chassis design, can be installed in 19 inches

have been CE certification



Power supply:DC 12V-17V

Sensitivity: -105dBm

S/N Ratio:>90dB

T.H.D:<0.05%Db

Max.deviation range:±45KHz

Working distance: about 100meter

Power:6.5W

Size:480*370*85mm

Weight:5KG

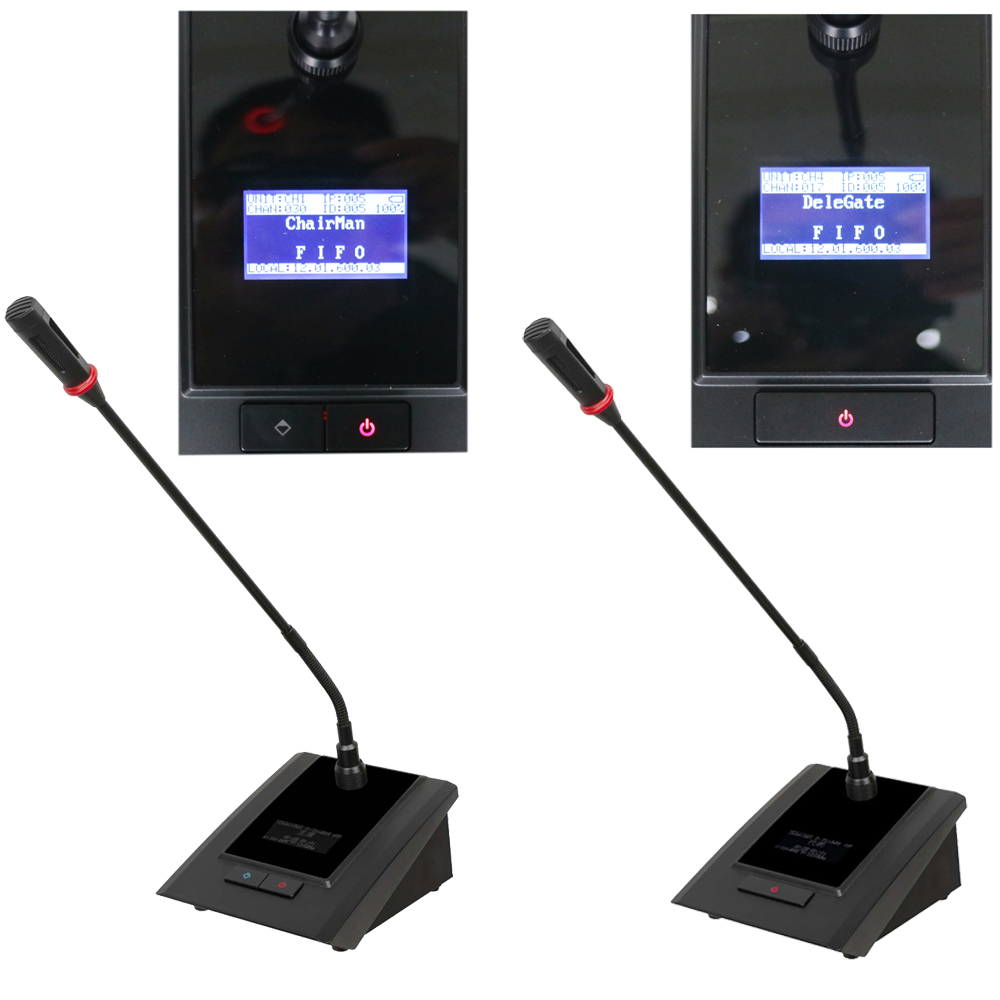

A116 Model: Wireless Chairman unit and Delegate unit Table Mic:


* Anti-electromagnetic, mobile phone interference function;

· 128X64 LED Tip speech patterns, working conditions, low pressure indication and control buttons, etc. Chairman of the content information;

· Chairman unit has the priority function, limited by limiting function, can cut the representative;

· Gooseneck microphone pole design, the microphone has a light ring indicates power-on state;

· External transmitting antenna, the signal all directions, which do not appear out of control within the effective range;

Power supply:DC4.5V (1.5V AA*3) battery

Emission power:10mW

Maximum frequency deviation:±45KHz

Pickup head:condenser,single direction

Sensitivity:-45±2dB@1KHz

Frequency response:20Hz-18KHz

Power consumption:130mA

Size: 190*125*63mm

Weight: 850g

Packing include:

(1) 1x MiCWL 1x A10M Wireless Host

(2) 10 x MiCWL A116 Wireless Table Unit

- ( 1 Chairman 19 Delegate or all 20 pcs Delegate Wireless Desktop Microphone )

(Please leave meesage or contact us)


(3) 1x AC-DC adapter (100V-250V universal )

(4) 1x Manual.
