- Model: EW100-G3-Handheld
Command the Stage, Captivate the Screen: Professional Dual-Mic Freedom for Every Voice
🔹 True Dual-Channel Freedom
Two handheld mics operate simultaneously on one receiver—perfect for duets, interviews, co-hosting streams, or pastor-congregation interaction. No cable tangles, full mobility.
🔹 Smart UHF Intelligence
200 selectable frequencies (100 per mic) + auto-scan function instantly locks clearest channel. Military-grade anti-interference tech thrives in crowded RF zones (concerts, urban venues, multi-room setups).
🔹 Secure & Far-Reaching
100m (328ft) stable range in open space. Frequency-hopping encryption prevents signal hijacking—critical for confidential briefings, secure broadcasts, or premium event content.
🔹 Voice-First Audio Clarity
Precision-tuned capsule + vocal-enhancement circuitry delivers crisp, natural vocals that cut through ambient noise. Ideal for large halls, outdoor stages, or noisy KTV rooms.
🔹 Plug-and-Play Versatility
XLR + 1/4" mixed outputs connect seamlessly to mixers, PA systems, speakers, or audio interfaces (for live streaming setups). Ready in 60 seconds—no technical expertise needed.
🔹 Built for Real-World Use
Metal housing withstands touring rigor. LCD display shows real-time frequency/battery/signal status. Ergonomic grip for extended comfort. Uses standard AA batteries (long runtime).
Precision-Engineered for Reliability
Technical Excellence You Can Trust
✅ Dual-channel UHF system with 200 selectable frequencies (100 per mic) + auto-scan for instant optimal channel selection
✅ Military-grade FHSS encryption ensures broadcast security for sensitive events
✅ Broadcast-grade audio specs: 50Hz-18kHz frequency response, >105dB SNR, <0.5% THD
✅ Dual outputs (XLR + 1/4") for seamless integration with PA systems, mixers, or audio interfaces (streaming setups require external audio interface)
✅ Real-time LCD monitoring on receiver & mics: frequency, battery level, signal strength
✅ CE/FCC/RoHS certified – meets global safety & environmental standards
From Grammy-nominated artists commanding festival stages to pastors inspiring congregations, streamers building communities, and families creating weekend KTV memories—the EW100G3 adapts to your moment. Engineered with input from sound engineers and live performers, it eliminates dropouts, distortion, and setup stress. Whether you’re broadcasting to millions or singing with loved ones, your voice deserves to be heard with unwavering clarity and confidence.
| Category | Parameter Details | |------------------|-----------------------------------------------------------------------------|
| System Configuration | 1U standard rack-mounted receiver + 2 handheld transmitting microphones (one-to-two) |
| Frequency Band/Channel | UHF 600-680 MHz | 200 adjustable frequencies (100 frequency points per channel) | Dual-channel independent operation, no interference |
| Modulation Technology | FM modulation + FHSS frequency hopping spread spectrum encryption (anti-signal hijacking/surveillance) |
| Frequency Stability | ±0.005% (quartz phase-locked loop PLL) |
| Audio Performance | Frequency response range: 50Hz-18kHz | Signal-to-noise ratio: >105dB (receiver) / >100dB (transmitter) | Distortion: <0.5% @1kHz |
| Transmission Performance | Open environment 100m (328ft) | Complex environment 50m+ | Anti-Wi-Fi/Bluetooth interference (smart spectrum scanning + automatic avoidance) |
| Receiver | Output interface: XLR balanced + 1/4" mixed output | Power supply: DC 12V/1A (including adapter) | LCD screen display (frequency/signaling/mute status) | Size: 210×45×180mm | Weight: 1.2kg |

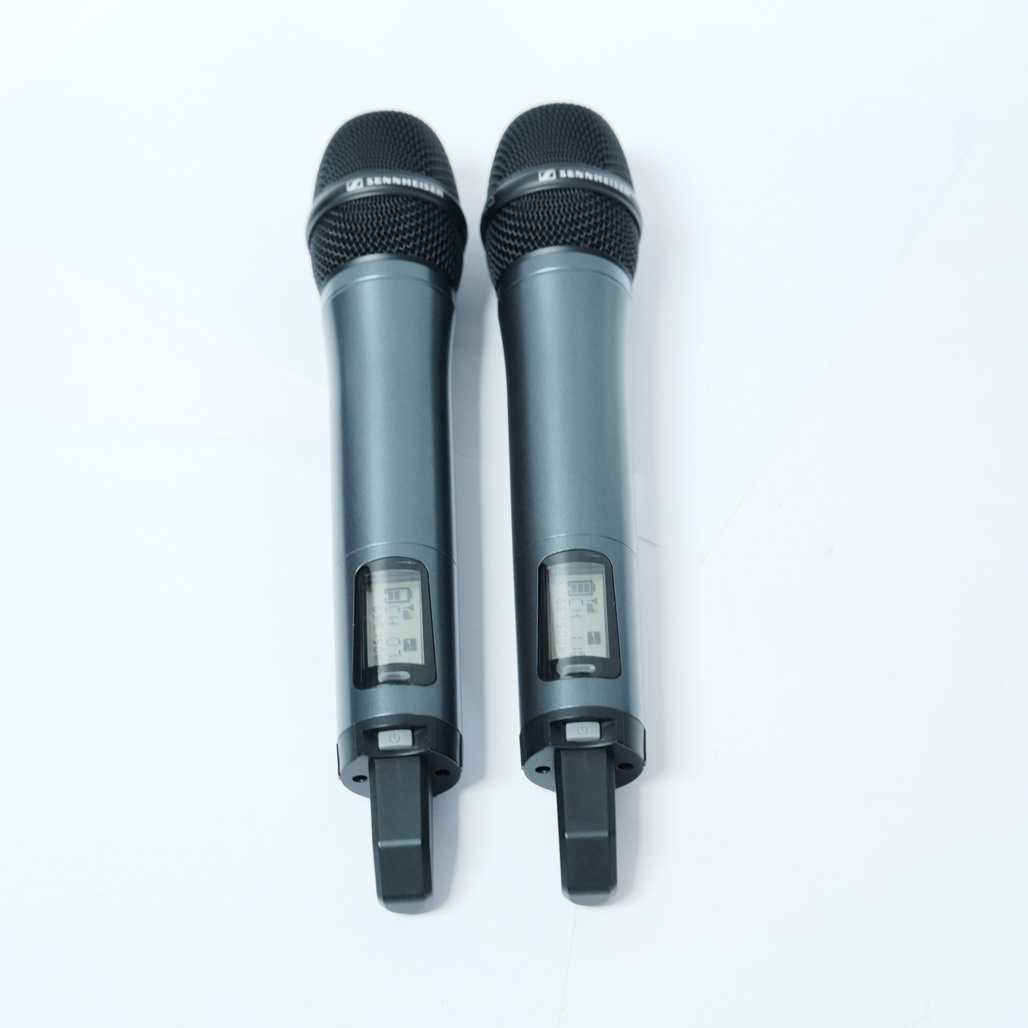

| Handheld Microphone | Battery: 2×AA alkaline batteries (single charge ≈ 8 hours) | Pickup: Omnidirectional cardioid condenser microphone | LCD screen display (frequency/power) | Size: Φ50×250mm | Single unit weight: 350g (including battery) |
| Environmental Adaptability | Operating temperature: -10℃~50℃ | Metal body anti-drop and wear-resistant | Anti-splatter microphone cover + anti-slip grip design |
| Certification and Compatibility | CE, FCC, RoHS certification | Compatible with mainstream mixing consoles/amp/power amplifiers/audio interfaces (for live streaming, an external sound card or audio interface is required) |

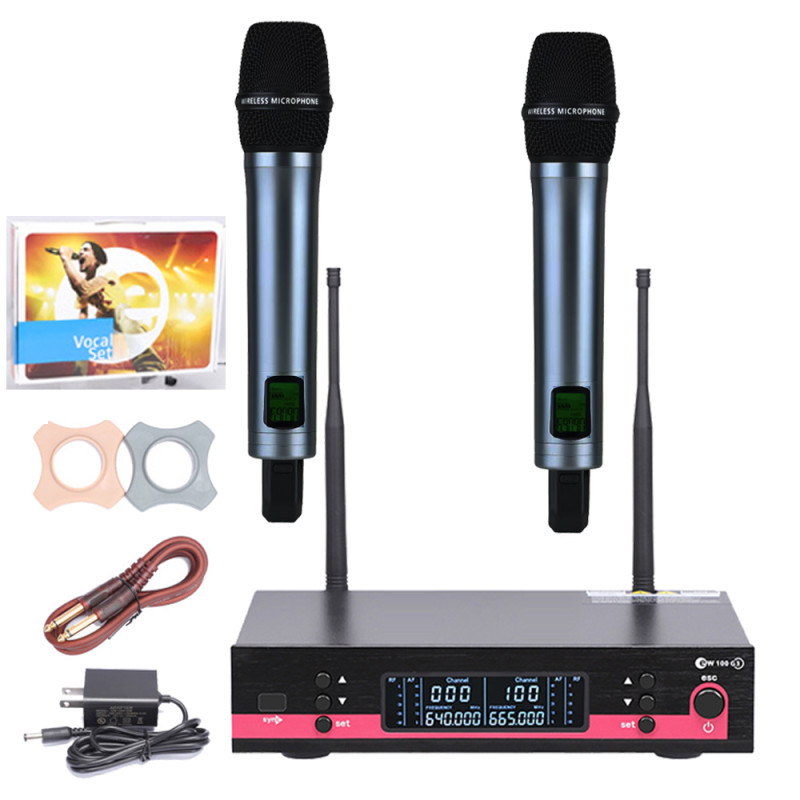

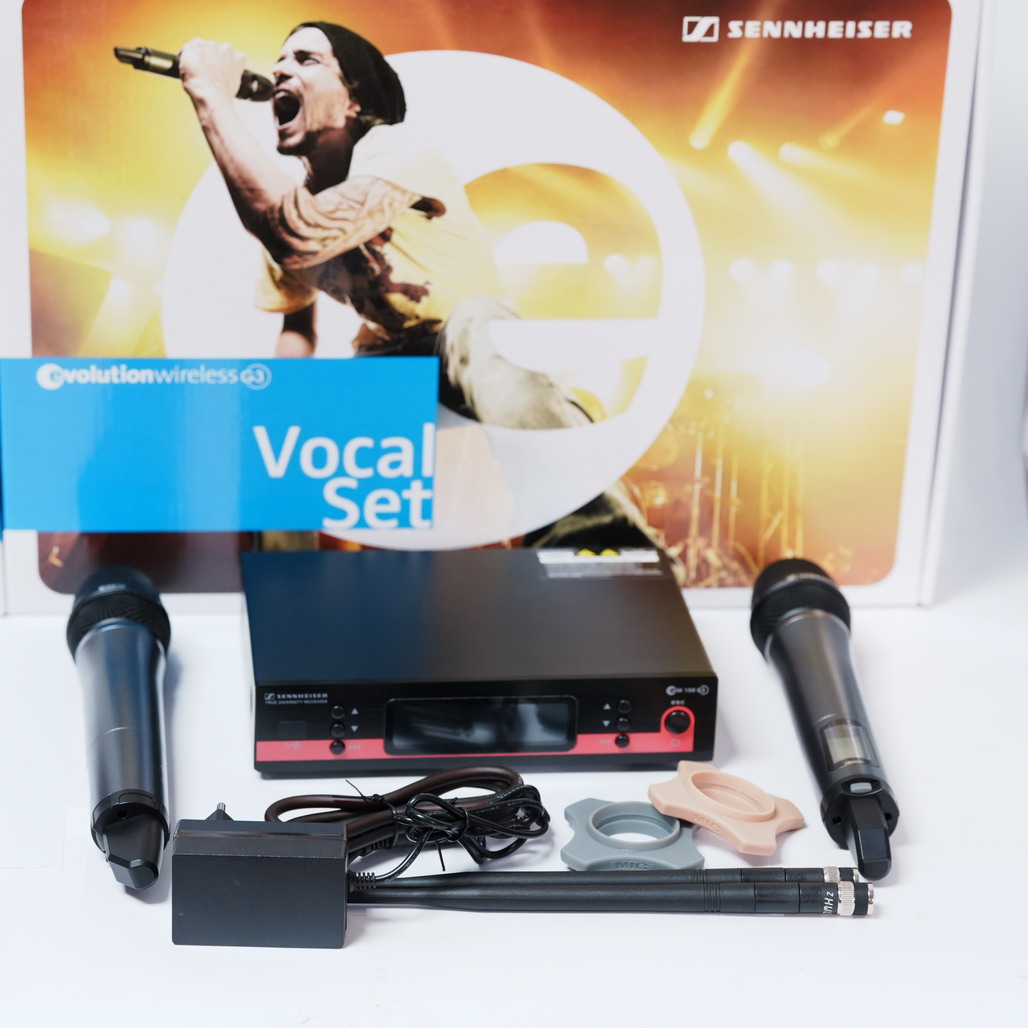

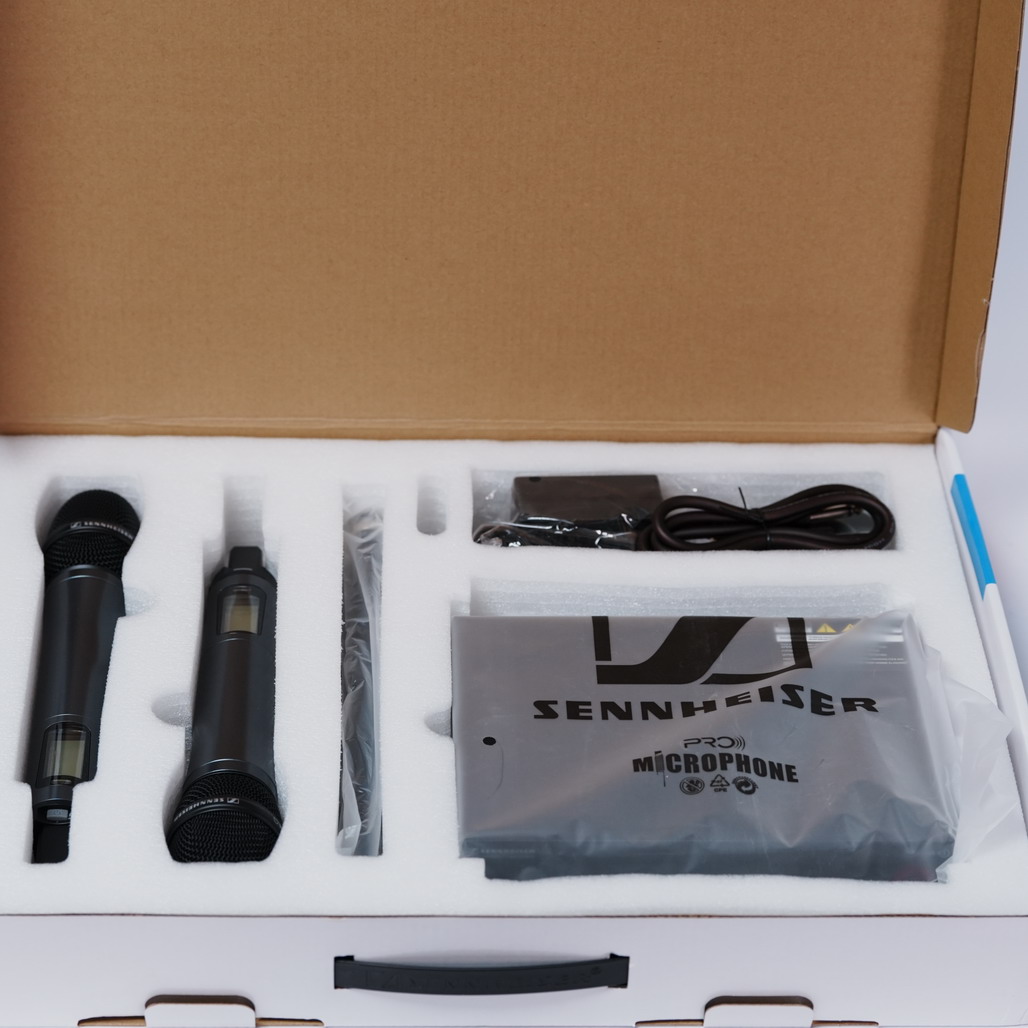

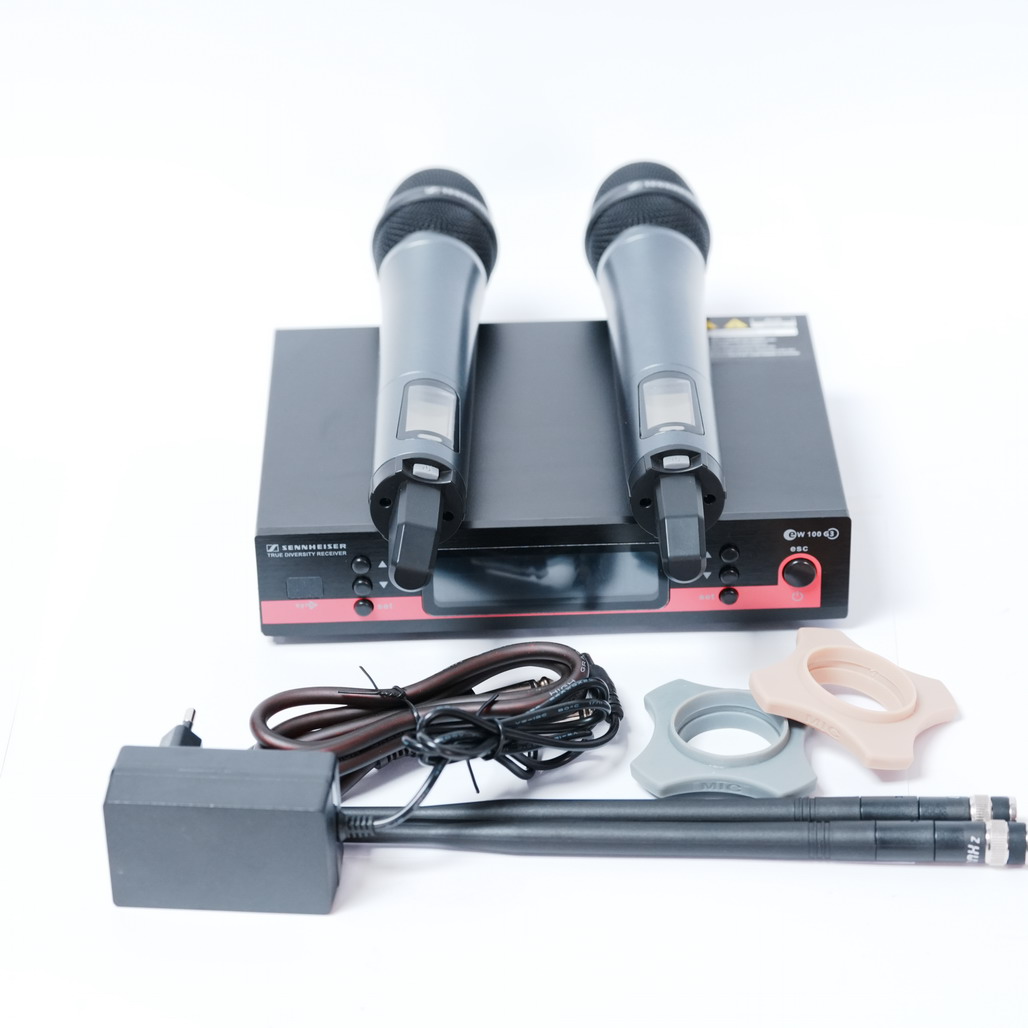

| Packaging List | Receiver ×1 | Handheld microphone ×2 | Power adapter ×1 | Antenna ×2 | Windproof sponge cover ×2 | Instruction manual ×1 |
