- Model: CA1300

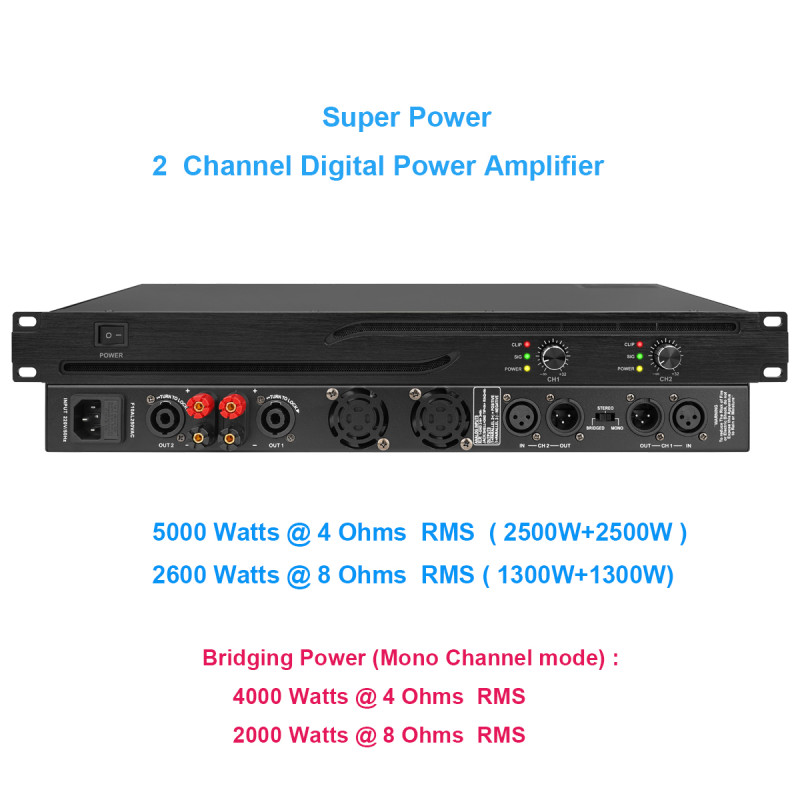

Original MiCWL CA Series 2 Channel Professional Digital Power Amplifier
5000W Output Power
2x 1300W versions
5000 Watts @ 4 Ohms RMS ( 2500W+2500W )
2600 Watts @ 8 Ohms RMS ( 1300W+1300W)
Bridging Power (Mono Channel mode) :
4000 Watts @ 4 Ohms RMS
2000 Watts @ 8 Ohms RMS
19" 1U Professional Power Amplifier Design
MSRP: $899.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
MICWL CA5000 Amplifer is a Professional 2 Channel Digital Power Amplifier that was developed using the expertise of professional
sound engineers,
working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with
the CA3200 awesome performance,
flexibility and crystal clear sound quality.
5000 Watts @ 4 Ohms RMS ( 2500W+2500W )
2600 Watts @ 8 Ohms RMS ( 1300W+1300W)
Bridging Power (Mono Channel mode) :
4000 Watts @ 4 Ohms RMS
2000 Watts @ 8 Ohms RMS
1. MiCWL CA3200 Digital Power Amplifier and other Commercial prodcuts integrated solutions for large shopping malls, conference
hassls, transportation hubs and so on.
2. Use the world's most advanced efficient switching power supply (SMPS) and Class D power amplifier (CLASS D) design.
3. Patented design of high quality porous heat sink, in harsh environments can be normal in low temperature operation
4. adopts the imported teflon wire, ensure the transformer can normally work efficeently at high temperature.
5. Built in Digital audio processor function.
6. With volume switch,Adjustable volume
7. Full set of protection functions to ensure that the product normally working
8. With Combined signal function,Multiple amplifiers can be connected in parallel to drive multiple speakers.
PARAMETER:
Input Voltage: AC220~240V, 50/60Hz or AC110~120V, 50/60Hz
(please leave message or Choose)
XLR, Balanced Inputs
Speakon and 1/4" Outputs
Front-to-Rear Airflow and Cooling Fan
Technical Specification :
Large capacity Digital Switching Power Amplifier
Automatic limit output, short circuit, overload, over temperature, power-on delay and other protection functions
The power amplifier is equipped with a delay start system to protect the speakers from impact and damage
The rear panel is equipped with dual channels,
Balanced input interface
SPEAKON output connector
483MM standard frame structure
The switching power supply of the power amplifier part has a separate cooling system
The cooling fan is controlled by an advanced stepless variable speed circuit
1U design, light body, easy to carry and install
Output/Output (8Ω, 1kHz) RMS: 4x650W /
Output/Output (4Ω, 1kHz) PEAK: 4x1300W /
Distortion: <0.005%
S/N ratio: 112dB (A-weighting)
Damping coefficient: >1000
Conversion rate: 50V/us
Frequency Response/Frequency Response: 20Hz~20kHz +/-0.25dB
Total Distortion/Total Distortion: 1% (8Ω, at 600W)
Input Sensitivity/Input Sensitivity: +3dB * (0.775V)
Input Impedance: 10kΩ (electronically balanced/Balanced)
DC residual: <5mV
Connect terminal Connector:
Input (CH1-2 3-4): XLR input connector; Output (CH1-2 3-4): SPEAKON output; Power: AC power Input (CH1-2 3-4): XLR Input
Connector; Output (CH1-2 3-4): SPEAKON Output; Power: AC power supply.
Indicator Lights:
Power indicator x 1 (green); input indicator x 2 (yellow); peak indicator x 2 (red); protection circuit action indicator x 1 (red)
Power Indicator x 1 (Green), Input Indicator x 2 (Yellow ), Peak Indicator x 2(Red); Feedback Protect Indicator x 1(Red)
Power Supply Voltage:
AC220~240V, 50/60Hz / or AC110~120V, 50/60Hz (using internal jumper switch/Via inside jumping switch)
1/8 Rated Activity Consumed Power: 50W, 80W, 110W
Working Temperature Range: 0~50℃
Working Humidity Range:
Below 90%RH/Under 90% RH (But it can not be condensation)
• 1x 2 Channel Digital Power Amplifier
• 1x Power Cable
• 1x Box packaging
