MiCWL Video Type Host Digital Wireless Microphone Conference System President Delegates Desk Unit A20M-A203

-60% MiCWL Video Type Host Digital Wireless Microphone Conference System President Delegates Desk Unit A20M-A203

MiCWL Audio Inc.


MiCWL A20M-A203 Table mode

Pro Meeting Room Digital

Video-Tracking Type

Wireless Conference Microphone Mic System




(Camera not Include)



 (Support up to 1 Host with 300pcs Desktop Microphone unit,

please contact us if you need more Delegate Unit Microphone)

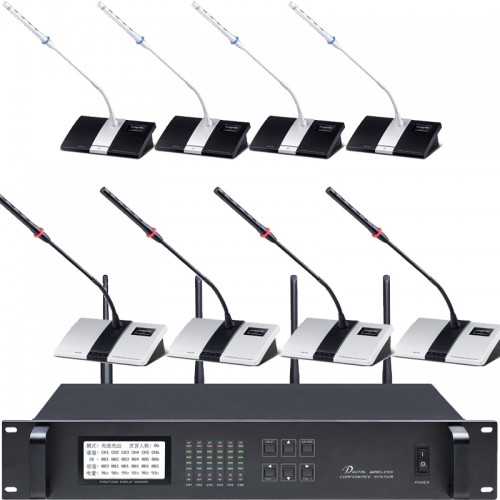

Packing Include:

1X Controller Host  Unit and Antenna Parts

1X Chairman Unit with Gooseneck Mic

19X Delegate Unit with Gooseneck Mic


2U 19" Rack Mountable Design Host









Brand New


MSRP: $99999.00











(Support up to 1 Host with 300pcs Desktop Microphone unit,



please contact us if you need more Delegate Unit Microphone)



Please contact us get accurate shipping cost.

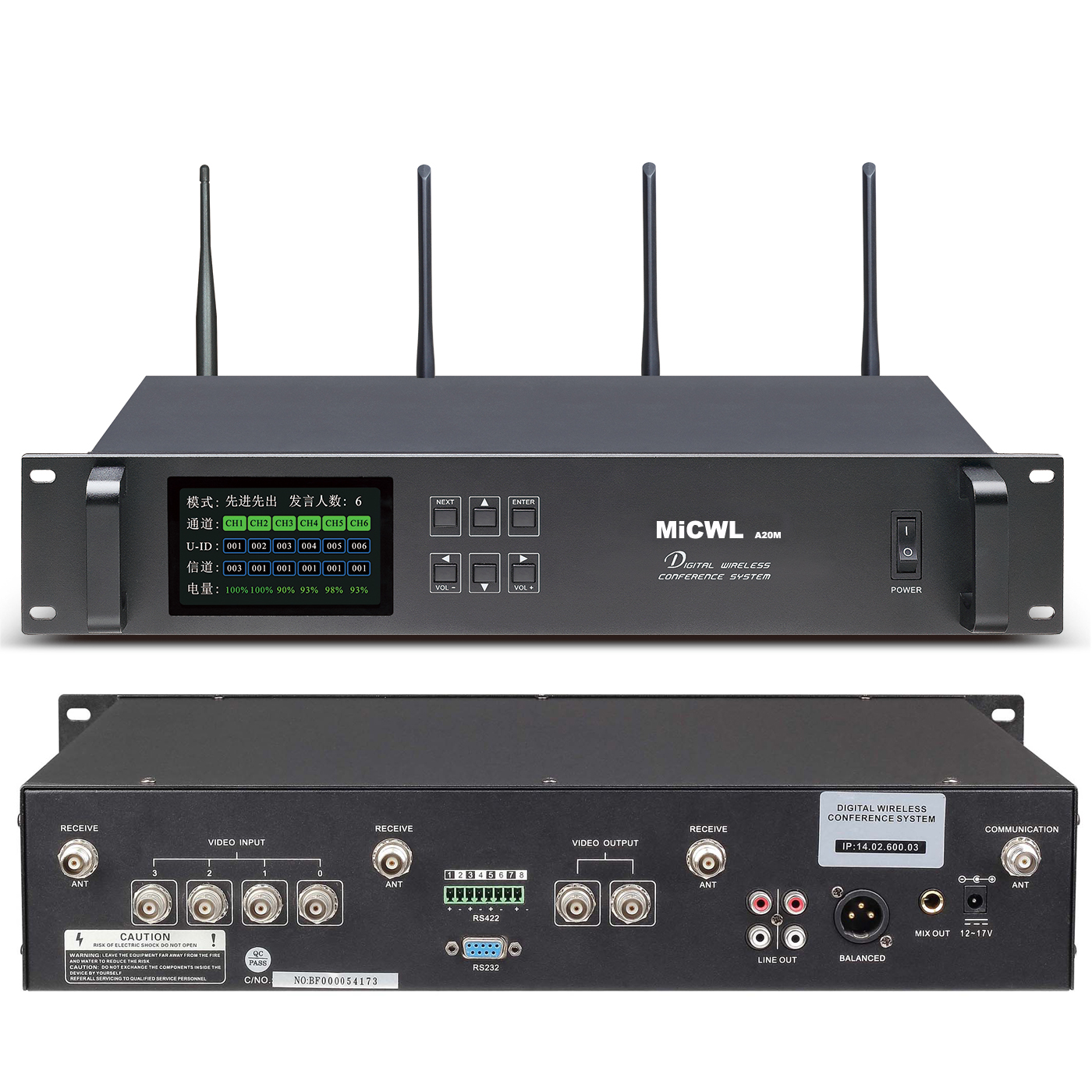

Host Unit description:

*Discussion and video-tracking function digital wireless conference system;
*Products using wireless digital audio signal processing and control signal, without complicated wiring;
*Scientific IP and ID encoding design,ID:001-008,IP:001-160;
*One host can support 255 units in the effective range.
*CPU correct and encrypt code multistage,Anti electromagnetic interference, mobile phone;
*Three speech mode:FIFO( first-in first-out),limited speech,chairman specially.
1-6 speaking number can be choosen.
*There is large screen(240*64) install in the host display content.
*Chairman has priority control function key.Can cut the speech of delegate at any time.
*Using distance:80-100 meters,communication distance:100-150meter;
*Can be installed on the 19 inch standard cabinet;
*Suitable for all kinds of meeting,conference occasions.


Digital wireless processing of audio signals and control signals
· Supports 255 conference units in the signal coverage area, and the number of speakers is optional. The chairman unit and the representative unit can be used freely

· Connection video can be realized Real-time video recording function, support 4-way camera signal input, 2 video output
* A variety of cloud billiards control protocol, highly compatible: Pelco_P VISCA_SONY-D70 Pelco _D protocol. (camera not include)

· PC control software with frequency linkage operation, to achieve integrated management interface
· RS232 port can be connected to the control, so that the meeting equipment intelligent.
· Identification code using two sets of matching application technology, easy to avoid interference and stack machine use
· Intelligent power management system, the host turns off the power, the unit will automatically shut down, reduce battery consumption
Remote frequency conversion function, to achieve long-distance unit and the host computer frequency synchronization frequency
· 240 * 128LCD large display work content, menu grading design, simple operation clear
· 3 kinds of speech simulation settings: first-in first-out mode, chairman mode, limit the statement
Three audio output ports can be used for different audio equipment connections
· 2U chassis design, can be installed in the 19-inch standard rack



Power (Power supply): DC12-17V
Receiving sensitivity (Sensitivity): -105dBm
Signal to noise ratio (S / N Ratio):> 90dB
Distortion (T.H.D): <0.05% dB @ 1KHz
Effective working distance (Working sistance): ≥100 meters
Session number of channels (Frequency channels): 6 * 60
Power (Power): 6.5W



Chairman and Delegate  Unit description: ( Black table unit and Silvery table unit for Choice)

*Discussion/Video-tracking digital conference system unit;
*Anti electromagnetic interference, mobile phone;
*LCD monitor indicate the working status;
*Chairman has priority control function.It is not limited by the limitation function, can cut the speech of delegate at any time;
*Gooseneck microphone,there is light ring in the microphone head;
*Full power can supported 8 hours.
*The length of gooseneck is 290mm.


Power supply (Power supply): DC 4.5V, AA1.5V * 3
Transmit power (Transmit power): 10mW
Pickup microphone (Microphone core): capacitive, single point
Microphone sensitivity (Sensitivity): - 43 ± 3dB @ 1KHz
Frequency response (Frequency response): 20-18KHz
Lasted longer (Working time) when using: Chairman and Delegate 8 hours




2 Color for choice  (Black table unit and Silvery table unit)
