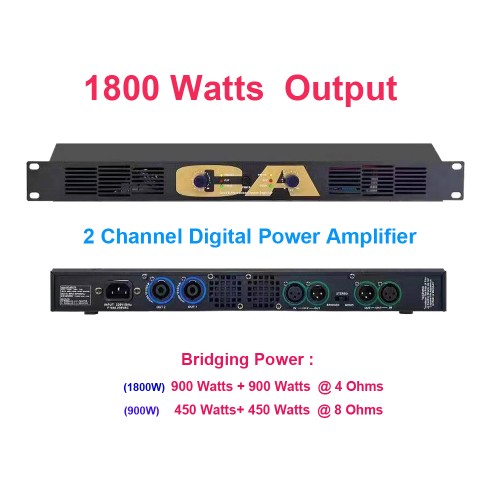

Popular CA Series Power AMP 1800W Digital Amplifier Dual Channel With Bridging Function Stage Concert Karaoke PA Audio Equipment

New -81% Popular CA Series Power AMP 1800W Digital Amplifier Dual Channel With Bridging Function Stage Concert Karaoke PA Audio Equipment

Welcome To Our Company Online Store



- - - MiCWL Audio Inc. - - -



MiCWL CA Series Power AMP 1800W Digital Amplifier Dual Channel






With Bridging Function tage Concert Karaoke PA Audio Equipment





MSRP: $2499.00



Brand New - Original Packaging



Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.









MICWL CA Series CA-450W Amplifer is a Professional 2 Channel Digital Power Amplifier that was developed using the expertise of professional

sound engineers,

working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with

the CA-450W awesome performance,

flexibility and crystal clear sound quality.



◆ Ultra -large switching power amplifier


◆ The protection functions such as automatic limit output, short -circuit, overload, over -temperature, boot delay and other protection functions


◆ The power amplifier is equipped with a delay startup system, which is damaged by protecting the speaker from impact


◆ The rear panel is equipped with dual channels,


◆ Balance input interface


◆ Speakon output connector


◆ 483mm standard rack structure


◆ The power amplifier part of the switching power supply part has a separate cooling system


◆ The heat dissipation fan is controlled by advanced stepless transmission circuit


◆ 1U design, light body, easy to carry and install








2x Channel with Bridging Function:




1800 Watts @ 4 Ohms ( 2 x 900W )


900 Watts @ 8 Ohms ( 2x 450W )








Output/output (8Ω, 1kHz): 2x450W


Output/OUTPUT (4Ω, 1kHz): 2x900W


Frequency response/FREQUENCY Response: 20Hz ~ 20KHz ± 3dB


Total distortion/Total Distortion:


1%(8Ω, 350W/time)


Enter sensitivity/Input Sensitivity:+4DB * (1.23V)


Input impedance/input Impedance: 10kΩ (electronic balance/BALANCED)


Signal ratio/S/N Ratio: ≥80dB


Connecting terminal Connector:


Input (CH1-2): XLR input connector; output (CH1-2): Speakon output terminal; power: AC power supply input (CH1-2): xlr input connector; output (ch1-2): Speakon Output; Power: AC Power Supply.


Display light Indicator Lights:


Power display light x1 (green); input display light x 2 (yellow); peak display light x 2 (red); protecting circuit action display light x 1 (red) Power Inicator x 1 (Green), input Indicator X 2 (YELLOW ), Peak Indicator X 2 (Red); Feedback Protect Indicator X 1 (Red)


Power voltage/Power Supply Voltage:


AC110 ~ 120V, 50/60Hz AC220 ~ 240V, 50/60Hz (using internal jump switch/via inside jumping switch)


1/8 rated movement 1/8 Rated Activity Consumed Power: 50W, 80W, 110W


The temperature range of using the environment is worn tempeature range: 0 ~ 50 ℃


The humidity range of the environment is working with Humidity Range:


Below 90% RH/Under 90% RH









How much Speaker can this amplifier drive:



450W each Channel:

It Can Drive 450W or less 450W @ 8 Ohm Sound Speaker each Channel ( 900W @ 4 Ohm each channel)

- If your speaker is no more than 500 watts, this amplifier is enough to drive.

( 2 Channel can Drive 2 Unit 450W Speakers )


with Bridging function , can Drive 1800W Speaker One Unit. PEAK Power 2400W


Also have1400W Super power each Channel Digital Power Amplifier for Choice (please check our company store or contact us)





(1) 1x Digital Power Amplifier ,


(2)  1x Power Cable,


(3) 1x Box Packing.










Warranty:


One Year Warranty Covered by MICWL Audio Inc.
