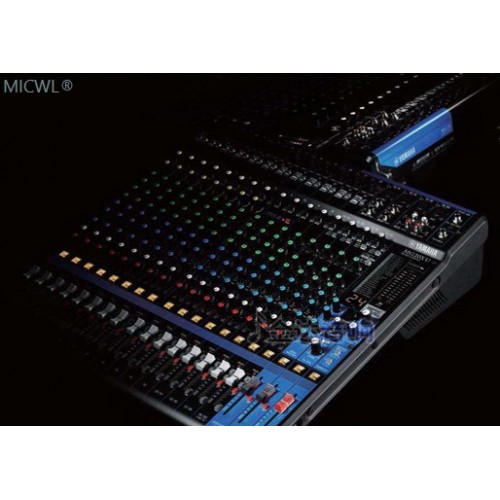

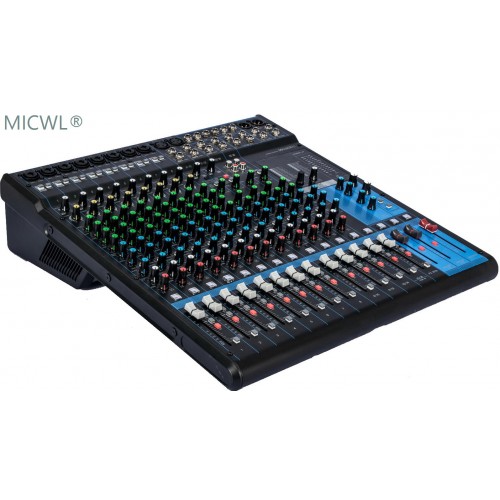

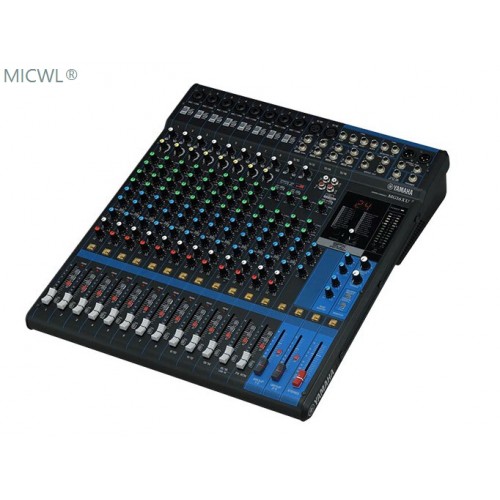

MG16XU 16-Input 6-Bus Mixer Sound Mixing Console with Effects USB 16 Channel

-56% MG16XU 16-Input 6-Bus Mixer Sound Mixing Console with Effects USB 16 Channel


MG16XU - 16 Channel USB Mixer with Effects

16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

16-Channel Mixing Console
Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
4 GROUP Buses + 1 Stereo Bus
4 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit/192kHz 2in/2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase Al DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Rack Mount Kit Included
Metal chassis
Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
Net Weight: 6.8 kg (15.0 lbs.)


SPECIFICATIONS:

OUTLINE

Mixing capability (On-board processors) : SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)

Phantom power : +48 V

Digital I/O : USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

Input Channels:

 - Mono[MIC/LINE] : 8

 - Mono/Stereo[MIC/LINE] : 2

 - Stereo[LINE] : 2

Output Channels:

 - STEREO OUT : 2

 - MONITOR OUT : 1

 - PHONES : 1

 - AUX SEND : 4

 - GROUP OUT : 4

Bus : Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)

Input Channel Function:

 - PAD : 26 dB (Mono)

 - HPF : 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)

 - COMP : 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec

 - EQ HIGH : Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving

 - EQ MID : Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking

 - EQ LOW : Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

 - PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping

 - Level Meter : 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]



GENERAL SPECIFICATIONS

Total harmonic distortion : 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response : +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150ω, GAIN knob: Max
